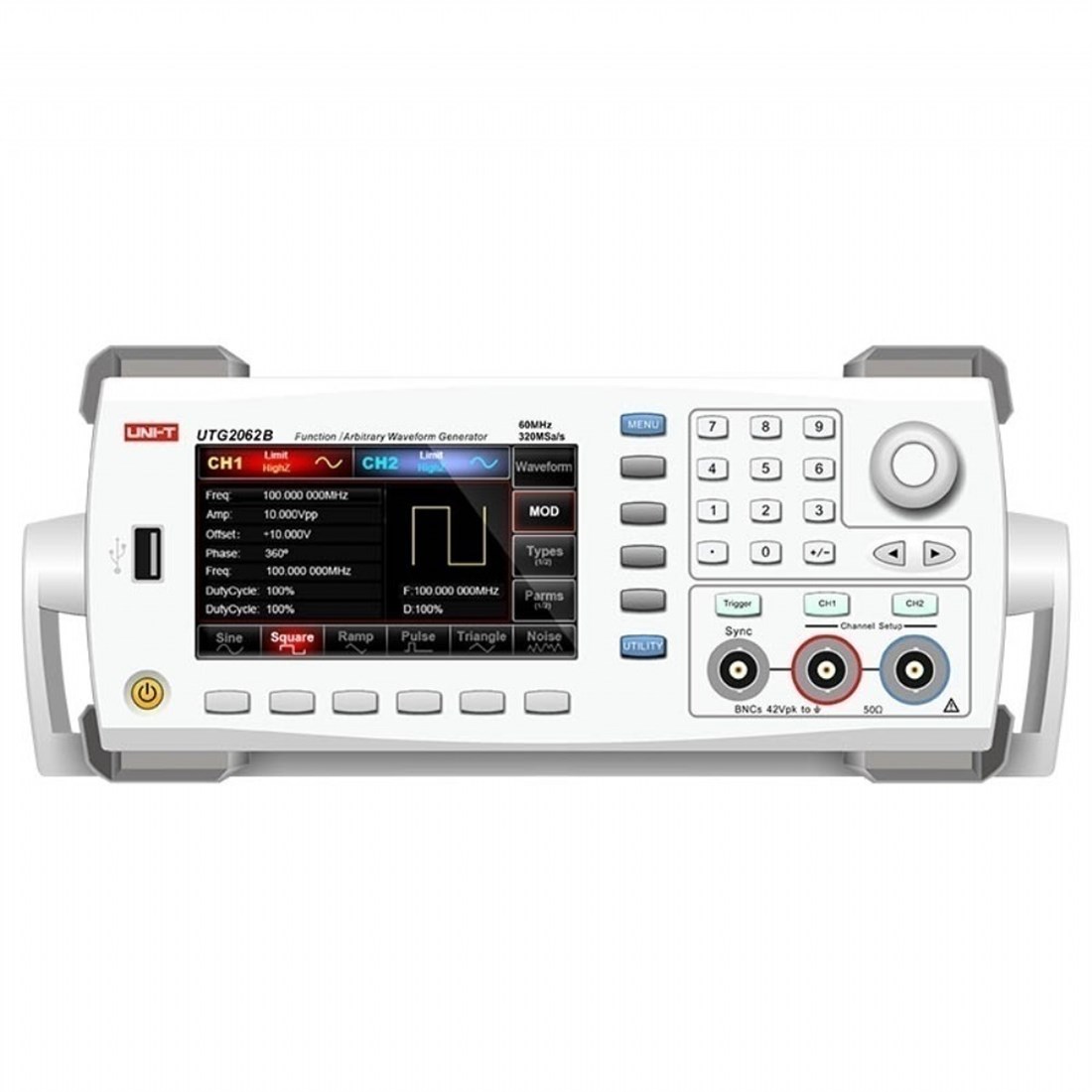

UTG 2062B Fonksiyon/Keyfi Dalga Biçimi Oluşturucu (UNIT-UTG-2062B)

0,00

İndirim Oranı : %57 İndirim

Fiyat : ₺45.954,00(KDV Dahil)

İndirimli : ₺19.760,22(KDV Dahil)

Specifications	UTG2062B
Max frequency	60MHz
Channels	2
Sampling rate	320MS/s
Waveforms	Sine, square, ramp, pulse, noise, DC, arbitrary; UTG2000B only: harmonic
Working modes	Output on/off, continuous, modulation, sweep, burst
Modulations	AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM
Arbitrary Waveform
Length	8pts~16Mpts
Vertical resolution	16 bits (symbol included)
Frequency Characteristics
Sine	1?Hz~60MHz
Square	1?Hz~25MHz
Pulse	1?Hz~20MHz
Ramp	1?Hz~3MHz
Harmonic	1?Hz~30MHz
Arbitrary	1?Hz~15MHz
Noise	60MHz (-3dB)
Resolution	1?Hz
Accuracy	±0.5ppm 25?
	First year aging rate: 1ppm
	Temperature coefficient: ±0.5ppm/?
Temperature Coeifficient	?2ppm/?
Interfaces	USB Host, USB Device, 10MHz clock source input/output
General Characteristics
Power	100V~240V ACrms, 50Hz/60Hz
Display	4.3-inch TFT LCD, WVGA (480 x 272)
Product color	White and grey
Product net weight	3.2kg
Product size	265mm x 110mm x 320mm
Standard accessories	BNC-BNC cable, BNC cable with alligator clips, power cord, USB interface cable
Standard individual packing	Carton box
Standard quantity per carton	2pcs
Standard carton measurement	380mm x 330mm x 320mm
Standard carton gross weight	8.5kg

Havale ile Ödeme ₺19.760,22

Kredi Kartı Tek Çekim ₺19.760,22
